XCalib¶

Camera-LiDAR cross-modal matching for edge devices: pretrained matchers, targetless extrinsic calibration, ONNX/TensorRT export, HDF5 training, and label-free one-shot adaptation — behind one small API.

xcalib is the deployment package for the matching front-end studied in Position Encoding in Detection-Based LiDAR–Camera Matching: A Diagnostic Study at Infrastructure Sites (accepted at IEEE Sensors Letters; final publisher URL pending). It runs the same weights on a lab workstation and an NVIDIA Jetson AGX Thor, and builds on the lab's prior calibration framework CalibRefine (Cheng et al., IEEE TIM 2026, arXiv:2502.17648).

Status — public staging snapshot, not the final official release. Release tags, PyPI publishing, and the official version will be cut after final confirmation.

Install¶

pip install XCalib            # inference
pip install "XCalib[onnx]"    # + ONNX export / onnxruntime parity checks
pip install "XCalib[train]"   # + h5py for HDF5 training

For normal use, install the PyPI wheel once it is published; a source checkout is only needed for development, paper validation, or local experiments.

Requires Python 3.10+ (CI tests 3.10 through 3.14). The wheel pins torch>=2.2 only — on Jetson keep the JetPack/PyPI torch you already have.

Quickstart¶

After installing the wheel, import Matcher, load a released checkpoint, and pass one camera/LiDAR frame with detector boxes:

import numpy as np
from xcalib import Matcher

# First call downloads and caches the released checkpoint/config.
matcher = Matcher.from_pretrained("crlite", site="a9_dataset_r02_s01")

image = np.zeros((720, 1280, 3), dtype=np.uint8)  # H,W,3 RGB
points = np.random.default_rng(0).uniform(
    low=[-20.0, -20.0, -2.0],
    high=[50.0, 20.0, 4.0],
    size=(4096, 3),
).astype(np.float32)
boxes_2d = np.array([[420.0, 260.0, 520.0, 360.0]], dtype=np.float32)
boxes_3d = np.array([[8.0, -1.5, -1.0, 11.5, 1.5, 1.6]], dtype=np.float32)

result = matcher.match(
    image=image,
    point_cloud=points,
    bboxes_2d=boxes_2d,       # K,4 (x1,y1,x2,y2) in pixels
    bboxes_3d=boxes_3d,       # M,6 (xmin,ymin,zmin,xmax,ymax,zmax) in meters
    top_k=1,
)

print(result.similarity.shape)  # (K, M)
print(result.matches)           # [(img_idx, lid_idx, score), ...]

For real frames, replace the arrays above with decoded RGB images, LiDAR points, and boxes from your detector. See Input protocol for the exact shape/dtype contract.

Everything a deployment needs hangs off the Matcher:

call	does
`Matcher.from_pretrained(model, site=...)`	load packaged config + released/local weights
`.match(...)` / `.pair(...)`	K x M similarity, top-k matches, latency
`.calibrate(frames, intrinsics=K)`	targetless PnP/RANSAC extrinsics
`.oneshot(K)`	one-shot adaptation session (pseudo-labels, adapter)
`.train(train_h5, val_h5)`	fine-tune the loaded weights on HDF5 caches
`.build("onnx" \\| "trt")`	export whatever weights are loaded
`.save_pretrained(dir)`	persist weights + config locally

Training and dataset helpers:

from xcalib import train, load_dataset

best = train("crlite", "a9_dataset_r02_s01", "a9_dataset_r02_s01",
             site="a9_dataset_r02_s01", epochs=100)
loader = load_dataset("a9_dataset_r02_s01", split="test")

External Configs¶

Packaged YAMLs under xcalib/cfg/ are just defaults. For custom weights or site-specific experiments, pass any external YAML path (or a plain dict / EdgeConfig) through the same config= argument:

matcher = Matcher.from_pretrained(
    "crlite",
    weights="runs/site42/best.pth",
    config="runs/site42/crlite_site42.yaml",
)

The config is loaded before the model is built, so it can change architecture knobs such as embed_dim, token_len, top_k, crop_size, point_cloud_size, vit.depth, vit.num_heads, gnn.num_layers, gnn.hidden_dim, similarity_head.hidden_dims, and CalibRefine dense.* widths/dropouts. If a cfg changes tensor shapes, the checkpoint must have been trained with that same cfg; released A9/UTC checkpoints should use their packaged YAMLs.

See it in action¶

Both clips are rendered from the public A9 (TUMTraf intersection) test cache with real checkpoints — regenerate them any time with pixi run python scripts/make_demo_media.py. For single-frame diagnostics in your own notebooks or reports, use the package helpers in Visualization.

Matching — `matcher.match()`¶

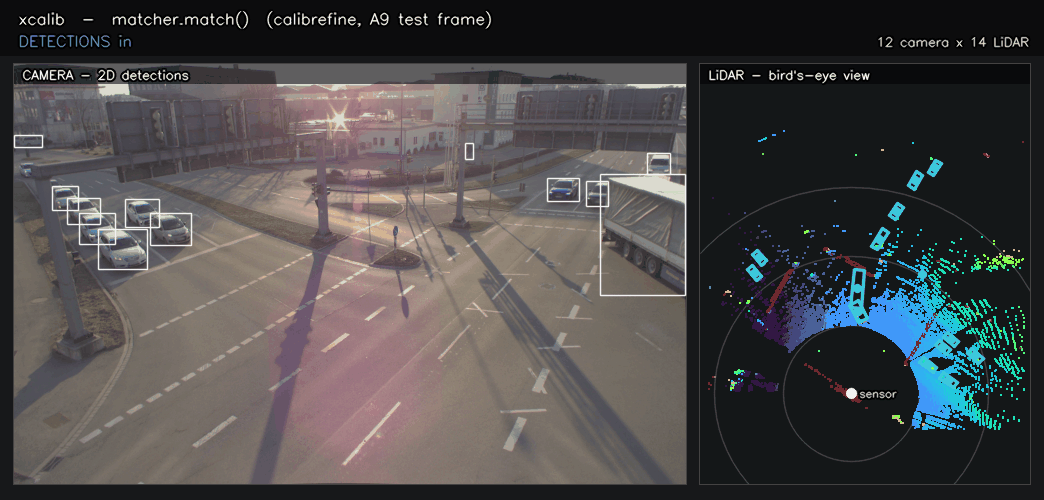

Matching demo on an A9 test frame

One frame, two unregistered sensors. The matcher embeds every camera detection (left, 2D boxes) and every LiDAR detection (right, bird's-eye view of the native cloud with 3D footprints), scores all camera x LiDAR pairs by cosine similarity, and takes the argmax per camera detection. Confident rows lock as green camera-to-LiDAR links; rows whose best score stays below the threshold are left unmatched on purpose — at an intersection the two sensors never see exactly the same set of objects.

Calibration — `matcher.calibrate()`¶

Calibrated camera-LiDAR projection on A9

Calibration is what those matches buy you. CalibrationSession accumulates confident (2D box center, 3D box center) pairs across frames and solves PnP/RANSAC with the camera intrinsics the protocol requires — recovering the extrinsics with no checkerboard or survey target. The overlay shows the calibrated projection at this intersection: LiDAR scan lines land on the road surface and the 3D detections wrap the vehicles. The matcher's 61 confident pairs from this 29-frame clip agree with the projection shown to a ~30 px median, which is the camera-box-center vs LiDAR-centroid offset, not noise.

(Full disclosure: this public test slice is a flat intersection, so the matched vehicle centers are nearly coplanar and a 6-DoF PnP solution is under-constrained — the figure therefore projects through the intersection's published reference calibration. calibrate() recovers the pose itself when the buffered matches span varied depth and height — longer clips, mixed vehicle sizes, non-flat scenes.)

One-shot adaptation — `matcher.oneshot()`¶

Once a projection matrix exists, it becomes a free supervisor. An OneShotSession watches deployment frames, keeps only the matches that are both confident and geometrically consistent with the projection (the matched LiDAR center must land near its camera box), and uses those pseudo-labels to train small identity-initialized adapters on top of the frozen backbone — no human labels, and the paper-grade weights are never overwritten. session.save() / matcher.save_pretrained() persist the site-adapted weights when you are happy with them.

Model zoo¶

Model	Backbone	Position encoding	Tier
`crlite`	ResNet + PointNet	Enhanced 3D (2D-sin + depth + 3D MLP)	paper
`crlite_2dpe`	ResNet + PointNet	2D-only	paper
`crlite_vit_exp1`	crop-ViT + PointNet	none	paper
`crlite_vit_exp3`	crop-ViT + PointNet	Enhanced 3D	paper
`calibrefine`	ResNet + PointNet2	2D sinusoidal (pairwise)	paper baseline
`crlite_vit_exp4`	crop-ViT + PointNet + GAT	edge-aware GAT	delivery only

calibrefine is our standalone port of the Common Feature Discriminator from CalibRefine (Cheng et al., IEEE TIM 2026, arXiv:2502.17648), kept as the pairwise baseline the paper compares against.

Released paper checkpoints and the public A9 cache can be loaded from the Hub or from local files; see Models and datasets.

Where next¶

Input protocol — the exact contract match() enforces.
Visualization — draw matching links and calibrated LiDAR projections.
Models and datasets — load released weights and A9 dataset caches.
Custom checkpoints and models — load external weights/configs, or add a new packaged architecture.
HDF5 cache format — what train() / load_dataset() read.
API reference — the curated public API.
Reproducing the paper — validation commands and reference numbers.
Paper evidence — frozen JSON evidence and public/private data scope.

API stability¶

Only the symbols exported by xcalib.__all__ (and documented in the API reference) are stable across minor versions. Anything imported from submodules (xcalib.engine.*, xcalib.models.*, ...) is internal and may change without notice.

Citation¶

The xcalib paper has been accepted at IEEE Sensors Letters. This entry keeps a temporary paper URL note until the publisher page is live:

@article{guo2026xcalib,
  author  = {Guo, Lihao and Tang, Jiahao and Bang, Tam and Zhang, Tianya and
             Harris, Austin and Sartipi, Mina and Cao, Siyang},
  title   = {Position Encoding in Detection-Based LiDAR--Camera Matching:
             A Diagnostic Study at Infrastructure Sites},
  journal = {IEEE Sensors Letters},
  year    = {2026},
  note    = {Accepted. Paper URL pending. Code:
             https://github.com/radar-lab/XCalib},
}

For the calibrefine baseline / prior framework:

@article{cheng2026calibrefine,
  author  = {Cheng, Lei and Guo, Lihao and Zhang, Tianya and Bang, Tam and
             Harris, Austin and Hajij, Mustafa and Sartipi, Mina and
             Cao, Siyang},
  title   = {CalibRefine: Deep Learning-Based Online Automatic Targetless
             LiDAR-Camera Calibration With Iterative and Attention-Driven
             Post-Refinement},
  journal = {IEEE Transactions on Instrumentation and Measurement},
  volume  = {75},
  year    = {2026},
  note    = {arXiv:2502.17648. Code:
             https://github.com/radar-lab/Lidar_Camera_Automatic_Calibration},
}
